PRI400W

Prima II Close Coupled Bottom Inlet S Trap, Std seat

RRP $685.00

White
White
Product overview
Technical info
Advice
Related Products
Product overview
  • WELS 4 star rated, 4.5/3L (3.5L avg/flush)
  • S Trap
  • Includes Standard seat
  • Vitreous China
  • Bottom inlet cistern
  • Round chrome button assembly
  • Optional offset connector available (687270) to extend the S trap setout range to 100mm -180mm
  • Optional Vandal Resistant Kit available WD004901
Technical Information
Specifications
item codePRI400W
product typesClosed Coupled Suites
brandStylus
rangePrima II
colourWhite
item materialVitreous China
trap typeS Trap
inlet typeBottom Inlet
pan height395 mm
pan projection size665 mm
CleanflushNo
wels with flow rate flush volume 1WELS 4 Star Rated, 4.5L/3L (3.5L Average Flush)
AS1428.1 AccessibleNo
AS1428.1 AmbulantNo
Independent Living CompliantNo
Product Codes
Prima II Close Coupled Bottom Inlet S Trap, Std seat
PRI400W
Prima II Close Coupled Bottom Inlet P Trap SC Suite
PRI450SC
Prima II Close Coupled Bottom Inlet P Trap Suite, Std seat
PRI450W
Prima II Close Coupled Bottom Inlet S Trap SC Suite
PRI400SC
Technical Downloads
DAE
RFA
SKP
DXF
OBJ
3DS

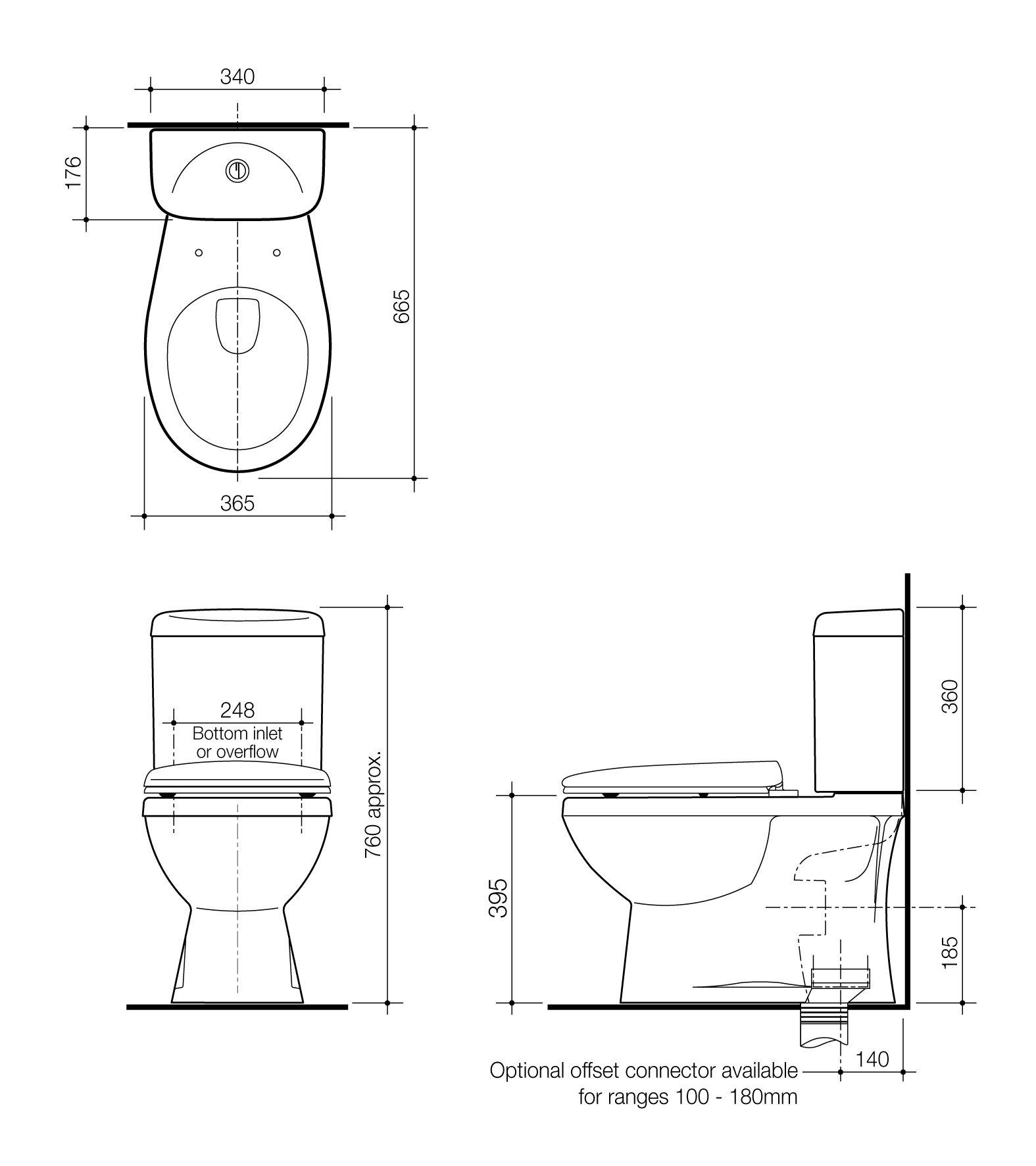

technical image
technical manual
installation guidelines
Measurements
