678210W
Leda Back Inlet Urinal
RRP $1107.00
White
Product overview
Technical info
Advice
Related Products
Product overview
Technical info
Advice
Related Products
Product overview

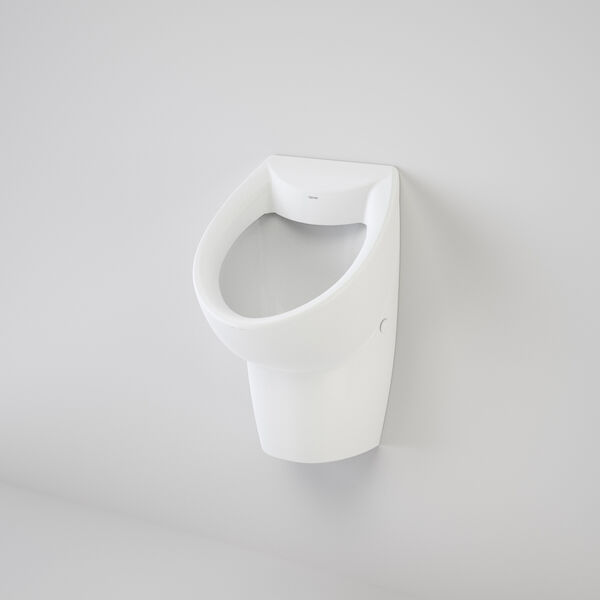

A premium, modern wall hung urinal with a box rim design and concealed trap for easy, efficient cleaning. The box rim style provides for a wash down flush, which effectively cleans the inside of the bowl on each activation. The grate is specially designed in vitreous china and factory fitted with vandal resistant fittings.
- WELS 3 star rated, 1.8L per flush when matched with Invisi II urinal cistern
- Wall hung urinal
- Back inlet only
- Includes D170 Concealed Fixing Bracket
- Vitreous china, white only
Technical Information
Specifications
item code678210W
product typesUrinals
brandCaroma
rangeLeda
colourWhite
item materialVitreous China
trap typeP Trap
inlet typeBack Entry
pan height540 mm
pan projection size315 mm
CleanflushNo
wels with flow rate flush volume 1WELS 3 Star Rated, (1.8L per flush per stall)
AS1428.1 AccessibleNo
AS1428.1 AmbulantNo
Independent Living CompliantNo
Product Codes
Technical Downloads

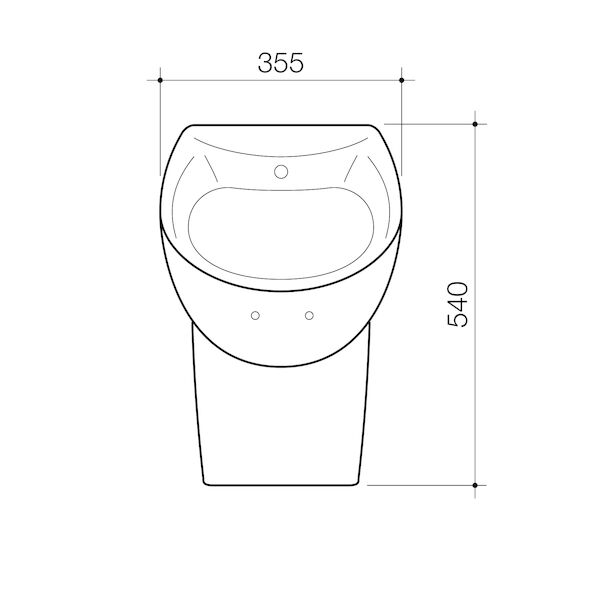

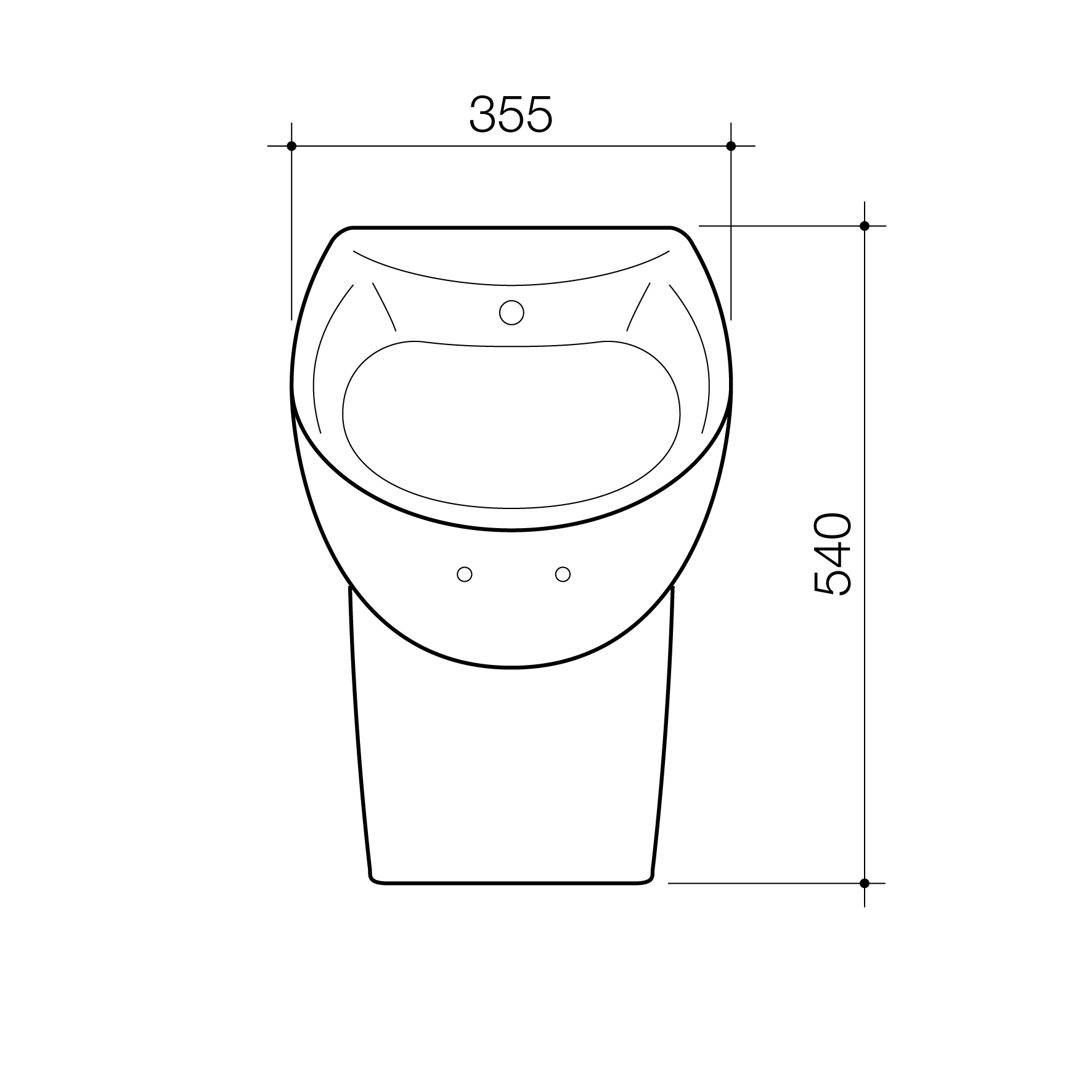

Measurements
