Caroma logo

977775W

Profile Right Hand Skew Trap Close Coupled Suite

RRP $1296.00

White
White
Product overview
Technical info
Related Products
Product overview

With its connector styling, the Profile Skew Trap Connector is the ideal choice for retrofit applications. Available in both right and left hand skew traps. - Award-winning Caroma Smartflush® technology reduces water use to 4.5 litres per full flush.

  • Chrome button assembly
  • Bottom inlet cistern
  • LH or RH Skew Trap available
  • Hygienic, snap-on detachable seat
  • Vitreous china, white only
Technical Information
Specifications
item code977775W
product typesClosed Coupled Suites
brandCaroma
rangeProfile
colourWhite
item materialVitreous China
trap typeRH Skew
inlet typeBottom Inlet
pan height400 mm
pan projection size650 mm
CleanflushNo
wels with flow rate flush volume 1WELS 4 Star Rated, 4.5L/3L (3.5L Average Flush)
Independent Living CompliantNo
NZS 4121 CompliantNo
Product Codes
Profile Right Hand Skew Trap Close Coupled Suite
977775W
Profile Left Hand Skew Trap Close Coupled Soft Close Suite
977770SC
Profile Right Hand Skew Trap Close Coupled Soft Close Suite
977775SC
Technical Downloads
DAE
RFA
SKP
DXF
DWG
OBJ
3DS
Exploded Diagram

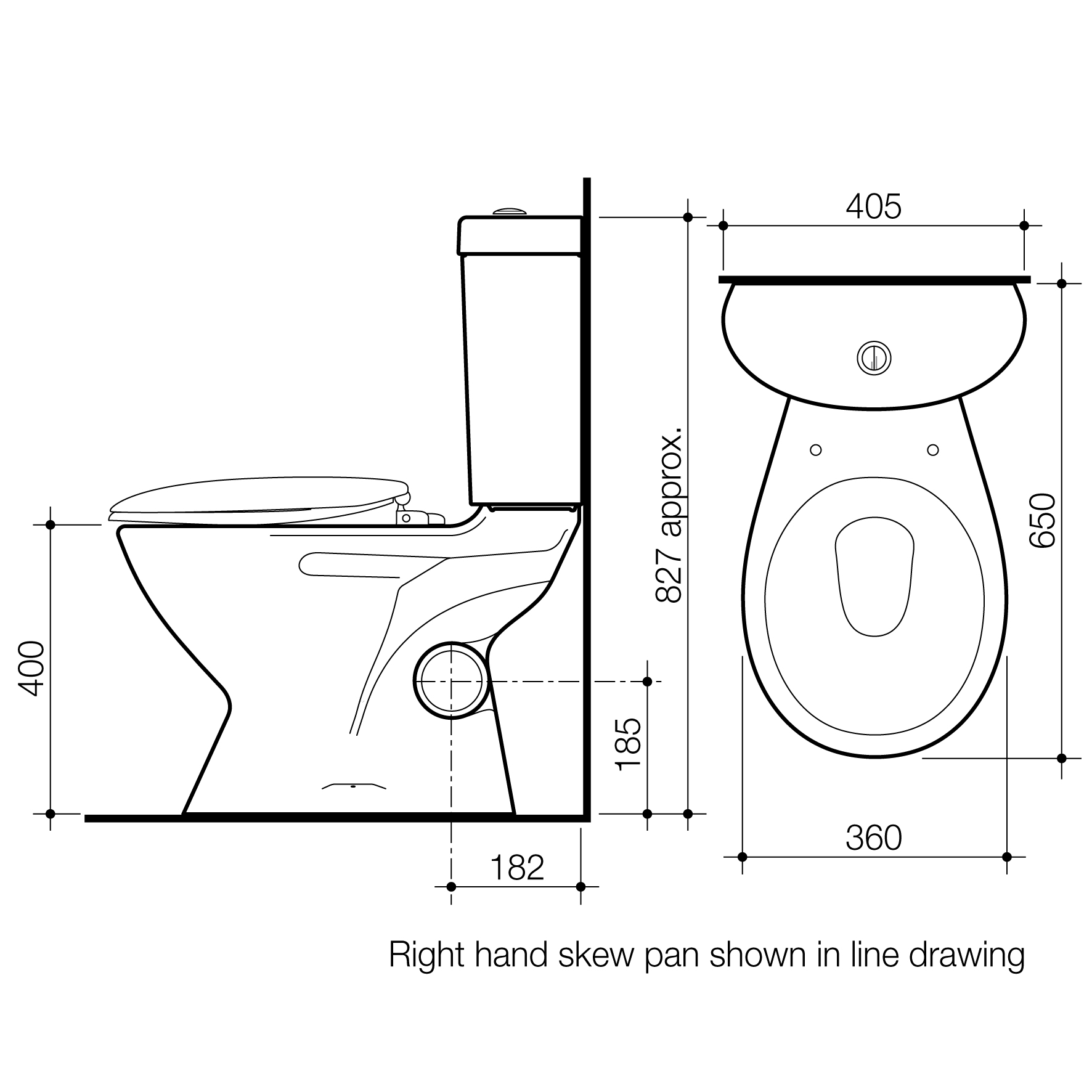

technical image
technical manual
installation guidelines
installation guidelines
Measurements
