Caroma logo

606310W

Trident Care Connector Pan S Trap

RRP $626.00

White
White
Product overview
Technical info
Related Products
Product overview

The Trident Care connector pan is designed to provide a raised seat height of between 460-480mm for persons with disabilities. The pan features a concealed trap, which facilitates easy cleaning. The versatility of the Caroma Care Trident pan makes it ideal for use by both the ambulant persons with disabilities and wheel-chair users including wheeled commode chairs.

  • Concealed connector style
  • S Trap only available
  • Back inlet
  • Suitable for persons with disabilities
  • No seat included.Pedigree II Care or Colani recommended
  • Vitreous china, white only
  • 4.5/3L Smartflush pan with a WELS 4 star rating
Technical Information
Specifications
item code606310W
product typesCare Pans
brandCaroma
rangeTrident
colourWhite
item materialVitreous China
trap typeS Trap
pan height430 mm
pan projection size450 mm
CleanflushNo
wels with flow rate flush volume 1WELS 4 Star Rated, 4.5L/3L (3.5L Average Flush)
Independent Living CompliantYes
NZS 4121 CompliantYes
Product Codes
Trident Care Connector Pan S Trap
606310W
Technical Downloads
DXF
DWG

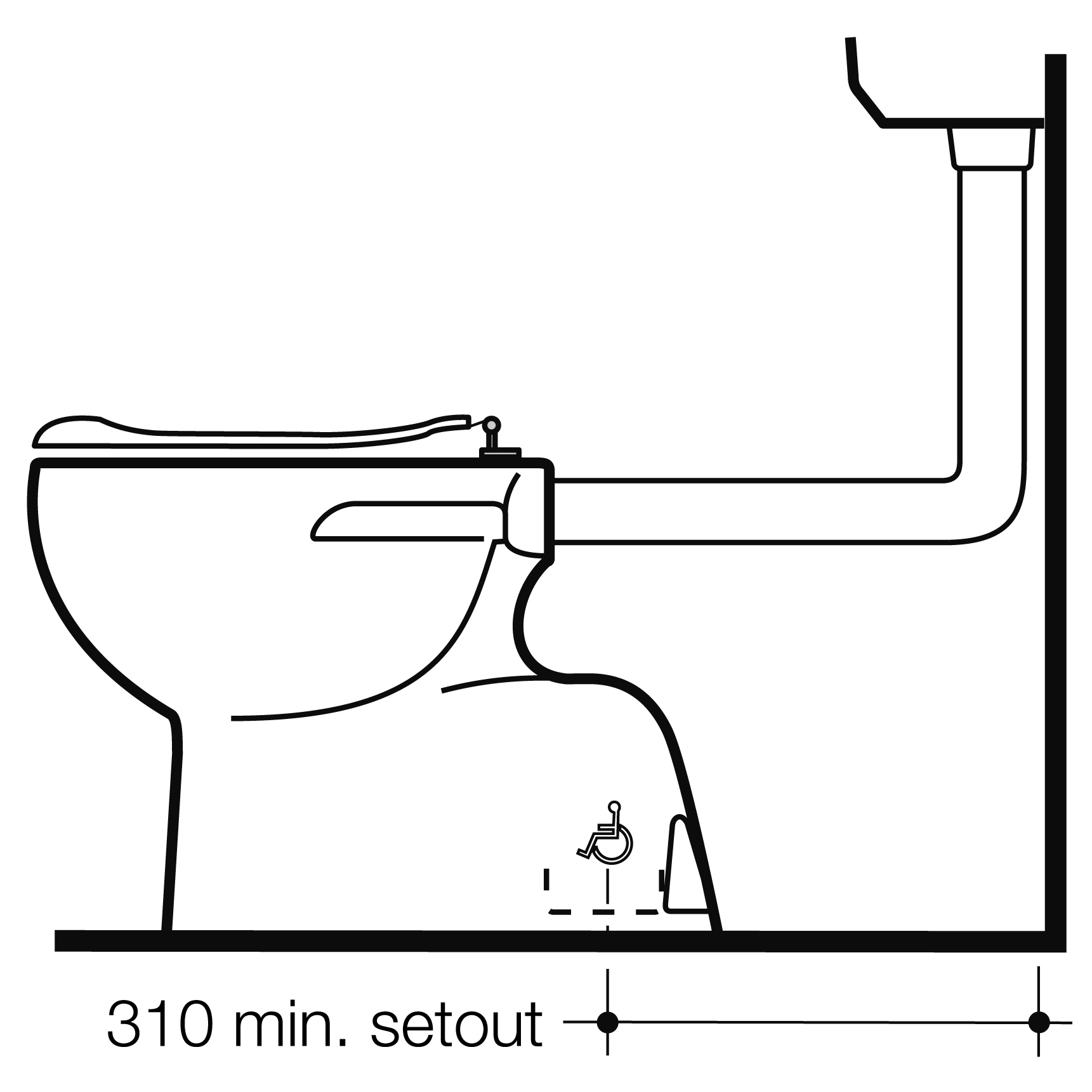

technical image
Measurements
